HIDRAULICA · H/HC MANGUERA HIDRAULICA

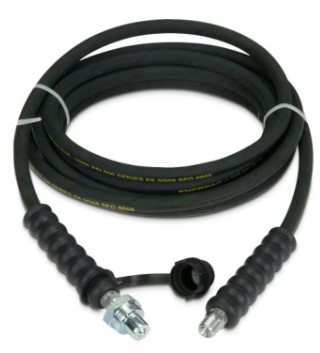

Manguera hidráulica (h/hc) 1/4" 20FT 3/8NPTF-CH604
Disponible en 14 medidas dentro de H/hc manguera hidráulica.Ver todas ↓
Elige medida14 variantes · ENERPAC
| Medida / variante | Código | Stock | Precio c/IVA |
|---|---|---|---|
| (H/HC) 1/4" 6FT 3/8NPTF-CH604 | HC9206 | 12 | $254.183 c/u |
| (H/HC) 1/4" 6FT 3/8NPTF-CH604 TERMOPLASTICO | HC7206 | Pedido | $343.829 c/u |
| (H/HC) 1/4" 10FT 3/8NPTF-CH604 | HC9210 | 15 | $350.453 c/u |
| (H/HC) 1/4" 20FT 3/8NPTF-CH604 | HC9220 | 12 | $645.364 c/u |
| (H/HC) 1/4" 20FT 3/8NPTF-CH604 | HC9220-O | Pedido | $955.714 c/u |
| (H/HC) 1/4" 30FT 3/8NPTF-3/8NPTF | H9230 | Pedido | $1.417.984 c/u |
| (H/HC) 1/4" 50FT CH604-CH604 | HC-9250C | Pedido | $1.276.694 c/u |
| 1/4" 30FT 3/8NPTF CH604 | HC-9230C | Pedido | $1.239.858 c/u |
| 3,0 m, Thermo-plastic High Pressure Hydraulic Hose, 6,4 mm Internal Diameter | H7210 | Pedido | $392.941 c/u |
| (H/HC) 3/8" 30FT 3/8NPTF-3/8NPTF | H9330 | Pedido | $1.141.809 c/u |
| (H/HC)TWIN 19.5FT TWIN (LLAVE TORQUE) | THQ706T | Pedido | $2.453.379 c/u |
| (H/HC) GOMA 50PIES 700BAR 3/8NPT | HC9250C | Pedido | $1.332.685 c/u |
| 10 HOSE W/CH-604, 3/8 NPT, .38" I.D. | HC7310 | Pedido | $802.112 c/u |
| HC | HC-7250C | Pedido | $1.812.592 c/u |
Estás viendo Manguera hidráulica (h/hc) 1/4" 20FT 3/8NPTF-CH604 · código HC9220-O. Toca otra fila para cambiar de medida.
DescripciónTexto del fabricante · inglés
HC9220, 20 ft., Heavy-duty Rubber High Pressure Hydraulic Hose, .25 in. Internal Diameter $535.25 Maximum Operating Pressure 10,000 psi Internal Diameter 0.25 in (6,4 mm) End One Coupler 3/8" NPTF End Two Coupler CH604 Oil Capacity 11.78 in3 Hose Oil Capacity When using long hose lengths, it is sometimes necessary to fill the pump reservoir after filling the hoses. To determine the hose oil capacity, use the following for .25" internal diameter hoses: Capacity (in3) = .5892 x Length (ft) (When using greater hose lengths, it is sometimes necessary to fill the pump reservoir after filling the hoses. To determine the hose oil capacity, use the following for 6,4 mm inside diameter hoses: Capacity (cm3) = 32,1699 x Length (m)) Length 20 ft Weight 8.3 lbs
Especificaciones
| Código | HC9220-O |
|---|---|
| Marca | ENERPAC |
| Diámetro | 1/4" |
| Categoría | H/hc manguera hidráulica |
| Sección | Hidráulica |
| Unidad de venta | Unidad · se vende de a 1 |
| Estado | Bajo pedido |
